Quick Details

  • Condition: New
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Win Tone
  • Model Number: TQNF-15
  • Production Capacity: 15 t/day
  • Voltage: 380V 50Hz
  • Power(W): 33.26kw
  • Weight: 4T, 4T
  • Dimension(L*W*H): 5200*1400*2800mm
  • Certification: ISO9001:2008
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Type: TQNF-15
  • Name: 15 Ton Corn Grits Corn Flour Milling Machine
  • Power: 33.26kw
  • Voltalge: 380V
  • Capacity: 15T/D
  • Motors: Chinese brand new
  • Application: Maize/corn
  • Colour: Green and White
  • Dimensions: 5200*1400*2800mm

Packaging & Delivery

Packaging Details 15 Ton Corn Grits Corn Flour Milling Machine Package:
1. Packing requirement: standard containers
2. Inner packing: product wrapped by plastic and put in wooded
3. Size: 20 feet container
4. Weight: 4T
5. Color: white
6. Model: TQNF-15
7.Packaging details: the normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too higher,we will pack it according to customers special request.
Delivery Time 15 days after receiving the down payment

15 Ton Corn Grits Corn Flour Milling Machine

Product Description

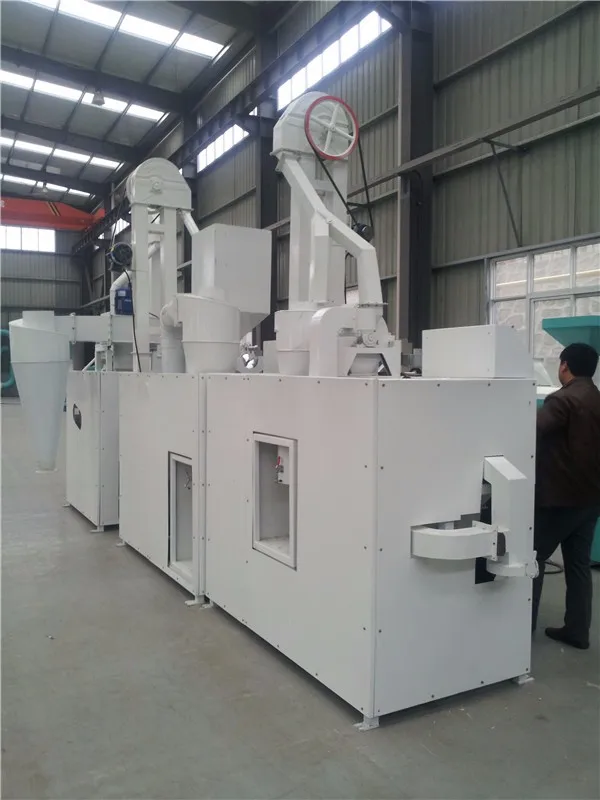

15 Ton Corn Grits Corn Flour Milling Machine:
15 Ton Corn Grits Corn Flour Milling Machine consists of cleaning, de-stoning, peeling, polishing, milling, sifting, and air separation system. It has the advantage of good sealing performance, no dust in public, clean environmental protection, simple operation, convenient maintenance, high degree of automation, beautiful appearance, small area cover, etc, and is a kind of new sets of combination equipment, suitable for farms, towns, small and medium-sized food processing enterprises.



15 Ton Corn Grits Corn Flour Milling Machine Features

1.The streamlined modular design, adopt one cleaning, two peeling and one polishing process, realizing full automatic control processing.



2.Using dry peeling method, without using water, compared with wet method, this processing is much cleaner.



3.The units involved in the processing equipment all are our patented equipment in corn grains industry, with successful application of the market more than 20 years.



4.Adopt modular design, can meet various grain processing demand, such corn,sorghum,millet.



5.Main components of the equipment adopt patented alloy material in conformity with export standards, so that ensuring long-term stability of the equipment on the base of high production efficiency avoid the user paying much on maintenance



6.Small power cost ,high efficiency,simple operation , and convenient maintenance .



7.The investment cost will reduce by more than 50% for the same capacity project than that of domestic counterparts , more than 80% than that of their international counterparts, this also is the core technology support that WINTONE can occupy 60 % grain processing machinery market share in domestic for twenty 20 years .



8.The processing process can realize automatic operation , and the whole processing unit only needs 1 electric control worker and 1 packaging worker. Only for arttificial spending. It can save 700 USD / month for the user on the same solution .







TQNF-15 15 Ton Corn Grits Corn Flour Milling Machine Technological Process:

TQNF-15 15 Ton Corn Grits Corn Flour Milling Machine Technical Parameter:



Single Machine Main Technical Index

Corollary Equipment Name and Model

Power(kw)

Yield(t/h)

Single

Total

Single

Total

TG19/8D Single Elevator

0.37*3

33.26

1-1.5



TQS-50 Cleaning and Destoner Machine Set

3

1.2-1.5



NFZ-280G Peeling and Polishing Machine Set

5.5*3

0.6-0.8

0.6-0.8

YMSF-404 Four-size Grits Machine

7.5

0.6-0.8



Exhaust Fan

2.2+2.2+0.75



Combination Machine Main Technical Index

No.

Item

Technical Parameter

Remarks

1

Yield(t/24h)

15



2

Power Input(v/HZ)

380/50



3

Total Power(kw)

33.26



4

Total Weight(t)

3--4



5

Size(l*w*h)(m)

5.2*1.4*2.8



6

workshop noises and dust concentration reaches the national standard

End Products

corn kernel, corn coarse grits, corn fine grits, corn coarse flour, bran for feeds





15 Ton Corn Grits Corn Flour Milling Machine Cleaning details:





15 Ton Corn Grits Corn Flour Milling Machine Hulling details:



15 Ton Corn Grits Corn Flour Milling Machine packing details:
